Detail Kabel N2XSEFGbY
Kabel N2XSEFGbY adalah kabel Listrik tegangan menengah. Merupakan kabel yang memiliki tiga inti tembaga dengan isolasi XLPE, menggunakan screen Copper Tape, dengan pelindung mekanis Steel Flat Armour dan selubung luar berbahan PVC. Kabel N2XSEFGbY memiliki lapisan isolasi PVC berwarna merah.

Similiar Cable:
N2XSEFGbY

Rate Voltage:
3.5/6 kV (7.2 kV)
6/10 kV (12 kV)
8.7/15 kV (17.5 kV)
12/20 kV (24 kV)
18/30 kV (36 kV)

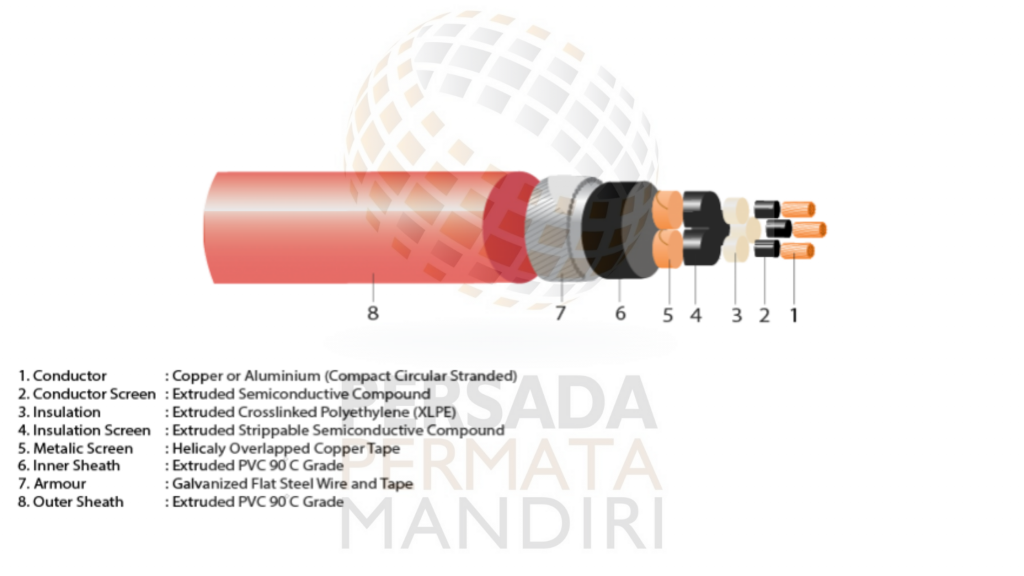

Contruction:

Conductor: Copper or Allumunium ( Compact Circular Stranded )
Conductor Screen: Extruded Semiconductive Compound
Insulation: Extruded Crosslink Polyethylene (XLPE)
Insulation Screen: Extruded Strippable Semiconductive Compound
Metalic Screen: Helicaly Overlapped Copper Tape
Inner Sheath: Extruded PVC 90o C grade
Armour: Galvanized Flat Steel Wire and Tape
Outer Sheath: Extruded PVC 90o C grade

Tersedia Core dan Size

3C x 25 … 630 mm2

Minimum Order
Bisa potongan dengan minimum 250 meter

Standard
IEC 60502- 2 : 2005; Spesifikasi lain tersedia berdasarkan permintaan

Harga
Hubungi langsung kontak kami di
Telepon +(62) 21 5366 2950 atau
WhastApp +628113807883 atau
Email info@persadapermatamandiri.com & yogie@persadapermatamandiri.com
