Identification of Cores:
Based on color coding per ICEA method 1, table E-2 ( for detail see table )
Other colours are available on request

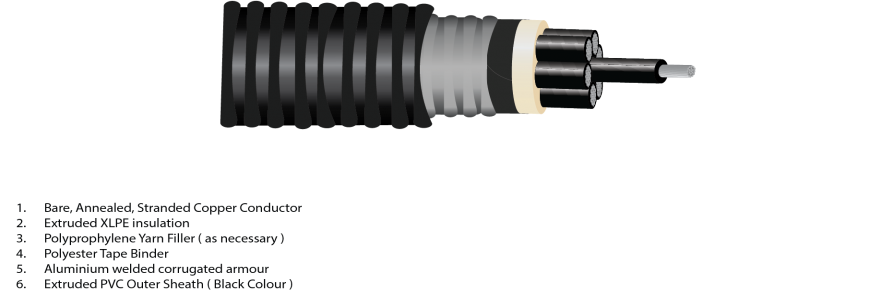

Bare, Annealed, Stranded Copper Conductor
Extruded XLPE Insulation
Polyprophylene Yarn Filler ( as necessary )
Polyester Tape Binder
Aluminium Welded Corrugated Armour
Extruded PVC Outer Sheath ( Black Colour )

Symbol    :    MC Control ( XHHW-2 )

Copper Conductor, XLPE Insulation with Aluminium Welded Corrugated Armoured and PVC Sheath

Applicable Standard:Type of Cable: MC-HL CONTROL or CU/XLPE/MC/PVC
Rated Voltage:0.6/1kV
Specification:IEC 60502-1
ICEA S-73-532/NEMA WC57
UL 44
Other Specification are available on request
Application:Indoor and outdoor ( wet or dry location )
Branch circuit for power,lighting, control and signaling
As aerial cable on a messenger
Installation direct burial
Installation cable tray
Approved for classes I,II and III Division 1 and 2, Class 1, Zones 1 and 2
